Products
Scaffolding Products
MS Jack with U-Head
Made from MS bright bar of 32 or 36 mm with adjustment up to 225 mm, 350 mm, or 450 mm, or the required size, and provided with MS nuts made from 56 mm bar. Each jack comprises 6 mm thick and 75 mm wide stirrup heads (U-shaped), which are used to hold steel or timber runners.

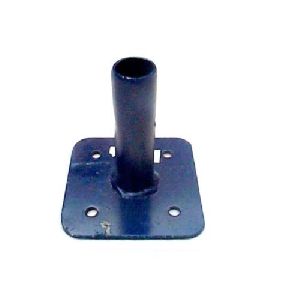

Fixed Base Plate
Base Plates made out of 150x150x6 mm welded with vertical tube pins or spigots provide plain surfaces to transfer load to the ground uniformly
MS Jack with Base Plate
Made from MS bright bar of 32 or 36 with adjustment up to 225 mm / 350 mm or the required size, and provided with MS nuts made from 56 mm bar. Each jack is welded with a base plate of 1S0x150x6-mm size.
MS Beam Brackets
Beam supports made out of 40 N.B. 'M 'Tube consist of two arms at 500 mm c/c welded with forged blades. Beam brackets are used to provide support to beam formwork from slab support standards with provisions for accepting U-head jacks. Each beam bracket has a safe load-carrying capacity of 1500 kg.

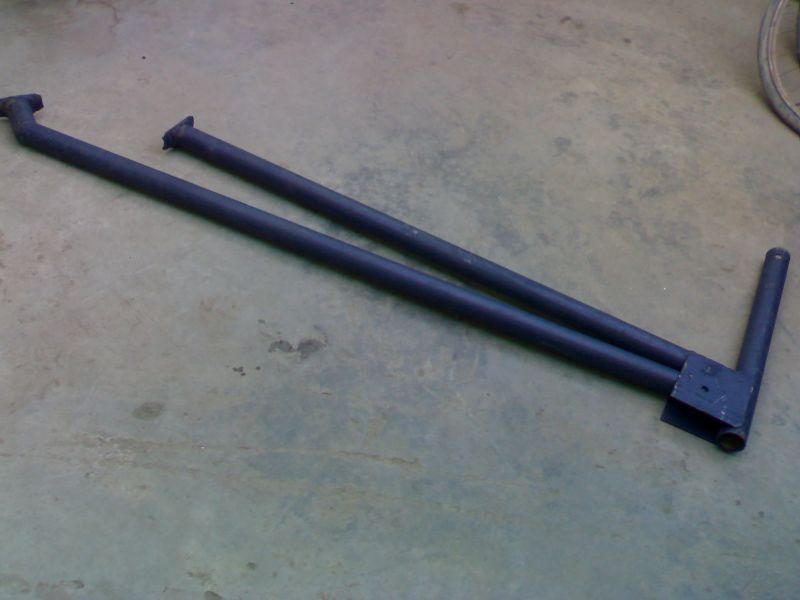

Cantilever Brackets
We are known as one of the trustworthy manufacturers and suppliers of cantilever brackets in Sonipat (Haryana). Tulika Engineers Pvt. Ltd. specializes in manufacturing cantilever brackets of different sizes, specifications, and designs. These brackets are made using the finest-grade metal to endure any kind of weather condition. Our product is dimensionally stable and meant for long-lasting use in construction applications. A number of customers place repeated orders for the brackets, which we make available in different qualities, finishes, and grades.

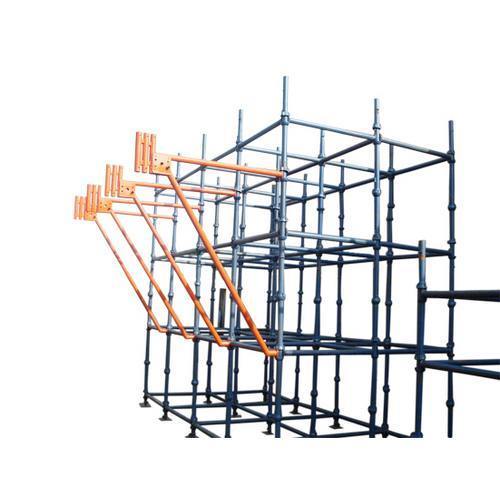

APU Scaffoldings
A P scaffolding consists of two verticals and one honzontal, both of 48.3 mm OD tube. On vertocals, lugs are welded at 500 mm c/c to provide rigid support to the horizontal, which has built-in three-way clamps welded at both ends to take bracing tube connecting units.
Cuplock Standards
Made out of 40 mm N.B. "M" tubes conforming to I.S. 1161 or I.S. 1239 with the provision of cups at a 500 rpm interval. Welded bottoms are pressed from high-quality steel as per I.S. 1079, and the captive mobile top cups are made out of malleable casting. Both cups provide firm grip to lever blades, making the connection rigid and enduring rough site handling. Standards Sizes: 1.0M, 1.5M, 2OM, 2.5M, and 3.0M, as per the client's requirements.

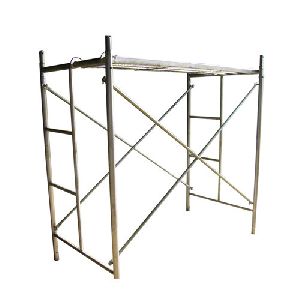

H Frame Scaffolding
It consists of a rigid welded frame of two vertical 40NB pipes connected by two 32NB pipes as horizontals. Two pieces of 50 NB pipes are welded at the top of the frame to accommodate the bottom of another similar frame. The frames are interconnected by scissors cross braces (20 NB "L") through pins welded to the frames and locked in position by spring clips.

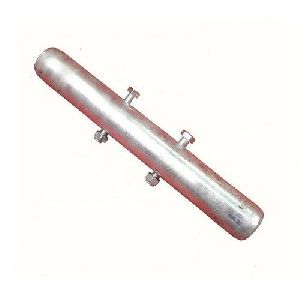

MS Spigot
250-mm long MS spigots made of 3mm thick & 38-mm square pipe is provided at lop of each vertical for making vertical connection Spigots are drilled in two places to receive locking pins.
MS Cantilever Frame
Cantilevers made out of 40N.B.M" Tube with forged blades welded to two arms and with provision for accepting U-head jacks at the other end

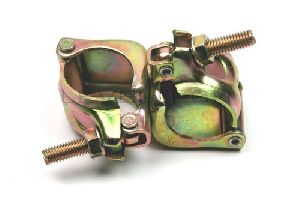

Scaffolding Swivel Coupler
Pressed coupler made out of 4mm MS sheets are used for connecting two tubes It may be Swivel Coupler for connecting tunes at any other angle.

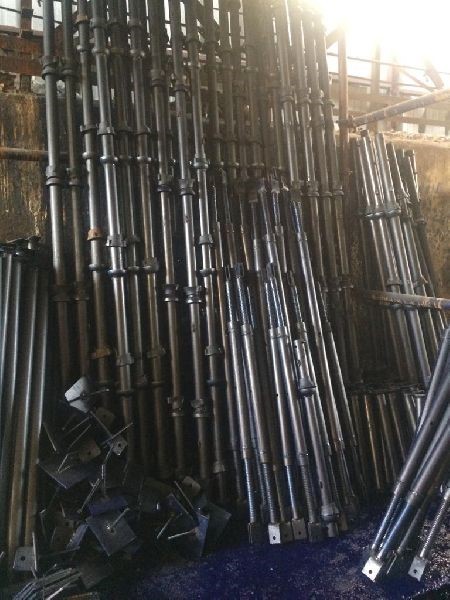

Cuplock Ledgers
Made out of 40 mm N.B."M" Tubes conforming to I.S.1161 or I.S.1239 having identical forged blades welded at both ends.

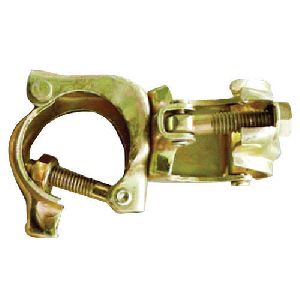

Right Angle Scaffolding Coupler
Pressed coupler made out of 4mm MS sheets are used for connecting two tubes It may be Right Angle Coupler for connectrrig tubes at right angle to each other.
Formwork Accessories
Adjustable Props
Made out of 40 N B "M" Inner pipe and 50 N.B outer pipe along with 150x150x6 mm base / head plate Each prop consists Of Inner and threaded Outer pipes along with turn handle & nut for final adjustment Props are used for supporting slab forms / under beam bottoms with adjustable height
Adjustable Column Clamps
Adjustable column Clamps are used to hold the column frames position so there is no bulging and de-shaping of columns.
Adjustable Beam Clamps
Adjustable beam clamps are designed for clamping beam formwork and casings so as to hold beam sides firmly thus preventing bulging. It allows inter changeability of arms, which ensures maximum versatility.
PSC Girder
Tulika Engineers Pvt. Ltd. is the foremost manufacturer and supplier of the finest PSC girder from Sonipat (Haryana). Our product serves as the hallmark of quality, performance, and longevity, as we manufacture it using the finest material and advanced tools and equipment. We design prestressed concrete girders as per the clients’ drawings and deliver the ready products in batches, as agreed between the clients and us. A team of qualified professionals as well as skilled people help us complete the orders on a timely basis.
Purpose Made FormWork
Tulika also undertakes design. fabricating. manufactunng and supplying of purpose made special formworks like Double adjustor panels. Haunch Plates. Splay Panels, Pipe lacketings. and steel formworks for Railway over bndges. Flyovers, Under ground piping. and other Precast Concrete elements. Tulika also undertakes on the site structural fabrication works for Godowns. Sheds, Workshop Yards, etc.

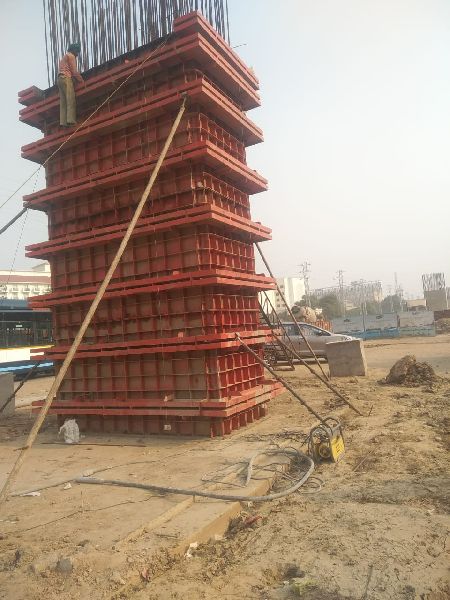

Pier Cap Formwork Shutter
Tulika Engineers Pvt. Ltd. is acknowledged as a successful manufacturer and supplier of pier cap formwork shutter from Sonipat (Haryana). For years, we have been fulfilling the needs of buyers in the construction industry with our strong and dimensionally stable pier cap formwork shutter, which we manufacture using hi-tech equipment and technical know-how. Our product has a huge demand in the construction industry due to its strength, structure, longevity, and affordability.
Slabform Panels
Slabform panels are made out of 2 mm thick press bent M.S. sheet and sheet pressed stiffener welded together. Pressed bent panels are light weight and available with 38 mm depth & 70 mm depth.

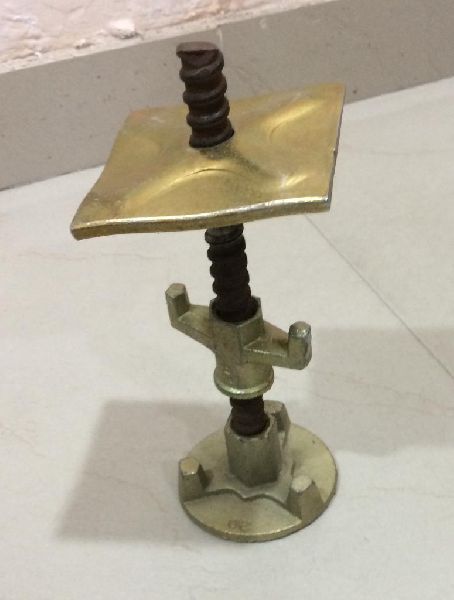

Scaffolding Tie Rod Formwork
When it comes to scaffolding tie rod formwork manufacturing companies, then the name of Tulika Engineers Pvt. Ltd. is counted among dependable manufacturers & suppliers of the same. We are based in Sonipat (Haryana) and our products find application in nationwide construction projects. We fabricate these products using different kinds of base metals in standard sizes and specifications. We are known for making scaffolding tie rod formworks available at reasonable prices.
MS Column Frames
All types of Column frames (Rectangular, Square, sized, Circular, Angular, T-Shaped, L-Shaped etc) are made out of MS-Sheet 3.15/ 4.0 mm welded and suitably stiffened with MS-Angles as per design.

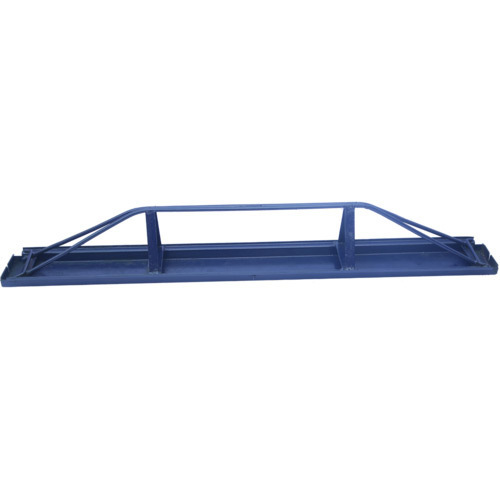

Metriform Beam
Metriform Beam are made out of pressed bent M.S sheet (I.S.:1079) 2mm thick stiffened with M.S. angle 22x22x3 & 20 mm round bar. These beams are specially designed for fixed spans to suit spacing between props Beam ends are designed suitably to be attached to the drop plate of the drop head and drops together with the plate when struck with a hammer. thus releasing the slab form panels placed between the beams.

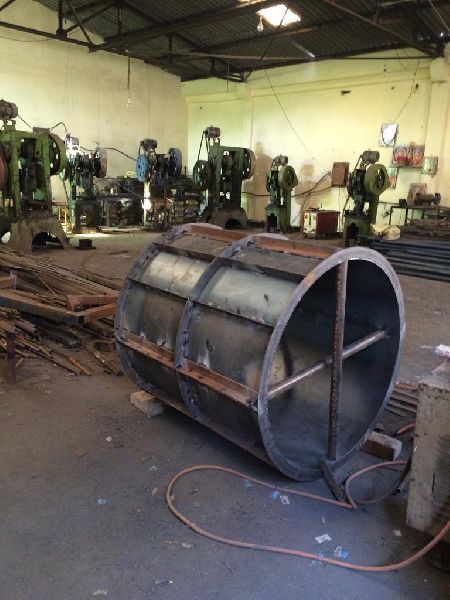

Circular Column Formwork
Tulika Engineers Pvt. Ltd. is engaged in the manufacture and supply of circular column formwork, which it makes available as per the clients’ specifications and design approvals. Based in Sonipat (Haryana), we specialize in manufacturing high-quality circular column formwork that is acclaimed in the construction industry for its sturdiness, corrosion resistance, dimensional stability, and affordability. We manufacture this product using state of the art technologies as well as high-grade steel metals.
Adjustable Span
It consists of an Inner span sliding Inside the outer span, which is used as a beam supporting, slabform panels. Adjustable Spans facilitates quick & easy erection / striping while eliminating intermediate supports Outer Span is made out of 2rnm MS Sheet, MS Flat 50x6, MS Rod 10mm, 16mm +. MS Angle 75)(75)(6 mm, and Eye bolt with nut. Inner span is made out of 2rnm MS Sheet MS Tee 40x40x5 mm, MS Angle 75x75x6 & MS Rod 10mm O. Size of Span
WallForm System
Wall form panels made out slotted Ms angles / Flats (40x5 or 45x4or 45x5etc.) welded with 2.5mm or 3.15mm sheets & suitably stiffened with ms-angles. It is a self- supporting system for concrete walls Available in pour heights of 1.25m, 2.5m or as per Client's requirement. Conventional wall form systems include Wall form Panels, Panel, Intenal Corner Panel, External Corner Panel, Lap Angles, Soldiers (light duty / heavy duty), Channel/Tubular Walers and standard wall form accessories like single clamp, Double / Bridge clamp, Assembly nut & bolt, Wedge & clip etc. Wall form systems can be either for one-sided shuttering or both sided shuttering with Loop anchors / Tie bars or Wall ties embedded in concrete. For curved walls flexible panels are used. Heavy-duty soldiers are used for single sided shuttering.

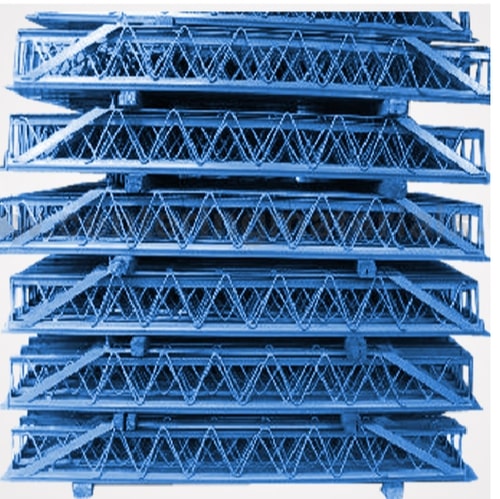

Telescopic Span
Tulika Engineers Pvt. Ltd. is known as one of the leading manufacturers & suppliers from Sonipat (Haryana) that deal in telescopic span. We use the finest grade metal to manufacture telescopic spans to cater to the roofing needs of the commercial establishments. We manufacture this product in different sizes and specifications to fulfill the needs of all. Our telescopic span, which features a stable structure, is quite durable and can be obtained at reasonable prices.

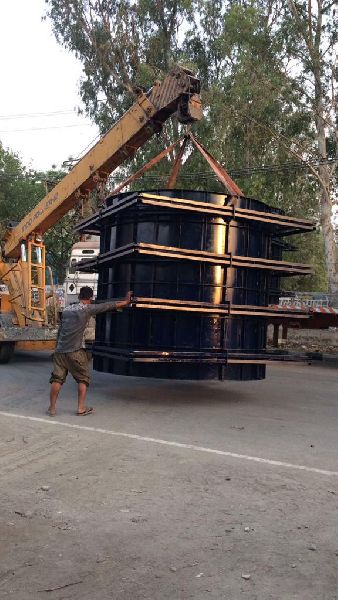

Pier Formwork
Tulika Engineers Pvt. Ltd. is a prestigious manufacturer and supplier in the construction industry of India, which brings forth superior grade pier formwork to cater to the needs of the public sector as well as private sector construction companies in India. We are based in Sonipat (Haryana) and fulfilling the buyers’ needs with precision-made pier formwork. Our product is dimensionally stable and meant for repeated and long-lasting use.
Tie Bolts
Made out of 40 mm N.B."M" Tubes conforming to I.S.1161 or I.S.1239 having identical forged blades welded at both ends.
Other Products
Mobile Shuttering System
Caster wheel mounted special wall forms, which move on channel track so as avoid frequent erection and dismanting of shuttering. Mobile Shuttering comprise of :
1. Caster Wheel mounted heavy-duty soldiers
2.Wall Forms
3.Wailer Pipe
4.Single/Bridge Clips
5. Tie Bolts
Hydraulic Gantry System
Hydraulically operated complete shuttening system lifted by means of heavy-duty jacks and pumps, which enables continuous concreting of high-rise structures like chimneys, silos, overhead water tanks, etc. Tulika Engineers Pvt. Ltd. is competent and experienced in fabricating and manufacturing all the structural steel components of the total slipform system, like yoklegs, wallform plates, lower and upper clamps, wailer clamps, jackholders, bushes, level controllers, etc.

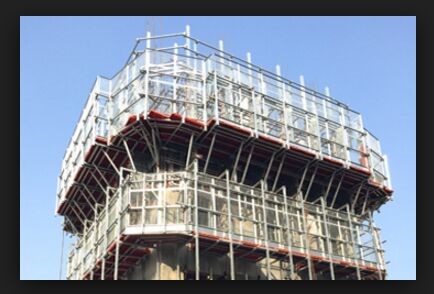

Jumping Formwork System
Tulika Engineers Pvt. Ltd. is competent and experienced in fabricating and manufacturing all the structural steel components of the total slip form system, like yoklegs, wall form plates, lower and upper clamps, wailer clamps, jack holders, bushes, level controllers, etc. We present the Jumping Formwork System, which is a hydraulically operated complete shuttering system lifted by means of a shuttering system with the help of heavy-duty jacks and pumps. This structure enables continuous concreting of high-raised structures, etc.
Panel Decking System
We present the Panel Decking System, which is popularly known as Tulika Decking Systems. Our panel decking system is designed to cater to various commercial and domestic requirements. Precision of structure and impeccable strength are special attributes of the panel decking system offered by us.
Slipform System
Hydraulically operated complete shuttenng system lifted by means of heavy duty jacks and pumps which enables continuous concreting of high raised structures like chimneys, silos, overhead water tanks. etc Tulika Engineers Pitt. Ltd is competent and experienced in fabricating and manufactunng all the structural steel components of total slipform system like; yokiegs, wallform plates. lower / upper damp, wailer clamp, jackholders, bush, level controller, etc.
